SNMP Management

This page is the full reference for NFO's SNMP service. It covers service configuration, credentials, Auto-discovery, device classification, manual device management, connectivity testing, module integration, and performance tuning.

For first-time setup, see the SNMP Setup Guide.

SNMP Service supports SNMPv2c and SNMPv3, and includes:

• SNMP Polling
• SNMP Traps
• SNMP Auto-discovery

Before configuring the service, review the feature breakdown below — capabilities are determined by your NFO license level.

Feature Tiers and Protocol Access

Your NFO license determines the complexity and security of the SNMP features available to you.

Capability	SNMP Basic (Included with NetFlow License)	SNMP Pro (Paid Tier)
Protocol Support	SNMPv2c	SNMPv2c & SNMPv3
Authentication & Security	Clear-text Community String	Encryption & Authentication
Auto-discovery	Manual device entry only	Automated IP Range Scanning
Device Grouping	Individual device lists only	Multi-Group Inheritance & Layered Monitoring
Custom OID Sets	Limited to Standard MIB-II	User MIBs & Custom OID Sets

Note on SNMPv3 Access

The ability to select SNMPv3 in the SNMP Credentials section, and the subsequent configuration of secure user-based authentication, is a feature exclusive to the SNMP Pro license. SNMP Pro is required for environments demanding data security and compliance.

---

Understanding Multi-Group Inheritance

NFO doesn't just put a device in a folder; it applies layered intelligence. As devices respond, NFO analyzes system attributes (such as sysObjectID, sysDescription, and Private Enterprise Numbers) to classify them into multiple functional layers simultaneously. Unlike traditional systems that lock a device into a single folder, NFO uses Multi-Group Membership to tag assets by:

• Vendor & Model: (e.g., Cisco, Catalyst)
• Functional Roles: (e.g., Switching, Firewall)
• Feature Tags: (e.g., StackWise, VPN Gateway)

NetFlow Optimizer uses a two-tier Multi-Group Classification system. Instead of a single static assignment, devices inherit intelligence from multiple groups simultaneously to build a comprehensive monitoring profile. This hierarchy allows for both vendor-specific technical accuracy and role-based operational reporting.

Device Groups (Vendor, Role, & Features)

A Device Group identifies the "What" — the manufacturer, the product line, and the specific capabilities of the hardware. This is the technical layer of NFO.

• Purpose: Determines the technical monitoring profile. It tells NFO which vendor-specific MIBs, OIDs, or YANG models (for Model-Driven Telemetry) to use for data collection.
• Multi-Group Logic: A single device can belong to several groups at once to inherit layered intelligence.
• Examples: Cisco, Catalyst 9000, Firewall, Switching, StackWise, VPN Gateway

Device Types (Visualization & Orchestration)

A Device Type identifies the "How" — the primary category used to organize your data globally. This is the operational layer of NFO.

• Purpose: Used exclusively to organize visualizations, dashboards, KPIs, and alerts. It enables unified reporting across different vendors (e.g., an "All Firewalls" alert policy that covers both Cisco and Palo Alto).
• Logic: While a device can have many Groups, it is assigned a single primary Device Type to anchor it within the UI and reporting engine.
• Examples: firewall, router, switch, wireless, infrastructure (UPS/PDU/Printer)

Summary: Intelligence vs. Visualization

Attribute	Device Group	Device Type
Focus	Technical Intelligence	Operational Visualization
Function	Maps OIDs, MIBs, and YANG models	Organizes Dashboards, KPIs, and Alerts
Membership	Multi-Group (Inherits from many)	Single Category (Standardizes view)

The Result: Your Device Groups ensure NFO is polling the right data, while the Device Type ensures that data is easy to find, alert on, and analyze in your dashboards.

Classification Rules

While NFO provides extensive built-in logic to handle this hierarchy automatically, administrators can use the Classification Rules tab to create overrides. This is useful for:

• Custom Tagging: Re-classifying a specific Linux server as a Security Appliance.
• Organizational Logic: Moving devices into groups based on custom sysName patterns (e.g., all devices with NY-CORE in the name).

---

SNMP Service Configuration Parameters

The SNMP service is enabled by default and can be disabled if not needed.

To configure SNMP polling navigate to SNMP Management in the NFO web interface.

Parameter	Description
T – SNMP expiration time in secs	Expiration time of SNMP data held in cache. Default: 86400 seconds (1 day)
Enable(1) or disable(0) SNMP service	1 — SNMP service enabled; 0 — SNMP service disabled
SNMP transport timeout in sec	Time to wait for SNMP reply from network devices to polling requests

The following image highlights the key parameters and sections within the SNMP Management interface. Refer to the numbered items and their descriptions below.

1. SNMP Credentials: Authentication credentials for SNMP polling.
2. SNMP Groups: Settings for SNMP device groups.
3. Auto-discovery: Settings for SNMP-based auto-discovery, such as IP ranges, device groups, and other parameters.
4. IPv4 device list: The list of IPv4 devices to be polled, including mapping to Exporter IP in case you receive flow data from these devices.
5. IPv6 device list: The list of IPv6 devices to be polled, including mapping to Exporter IP in case you receive flow data from these devices.
6. MIB library: Optionally add MIBs not included in NFO to build OID sets.
7. SNMP traps input list: A list of active SNMP Trap ports. Configuration is also available under Inputs > SNMP Trap Inputs.
8. IPv4 interfaces overrides list: SNMP Polling data defaults / overrides for IPv4 interfaces.
9. IPv6 interfaces overrides list: SNMP Polling data defaults / overrides for IPv6 interfaces.
10. Link to SNMP connectivity tester: Opens a pop-up to test SNMP connectivity using IP address and credentials.
11. Link to Custom OID Sets: Takes you to Custom OID Sets Monitor Module for SNMP metrics configuration.
12. Link to Auto-discovery Reporter: Takes you to Auto-discovery Reporter Module to configure reporting of discovered devices and connections.

---

SNMP Credentials

SNMP polling requires authentication. NFO supports SNMPv2c community string authentication and SNMPv3 user-based authentication. You can add an unlimited number of credential entries to support diverse network environments.

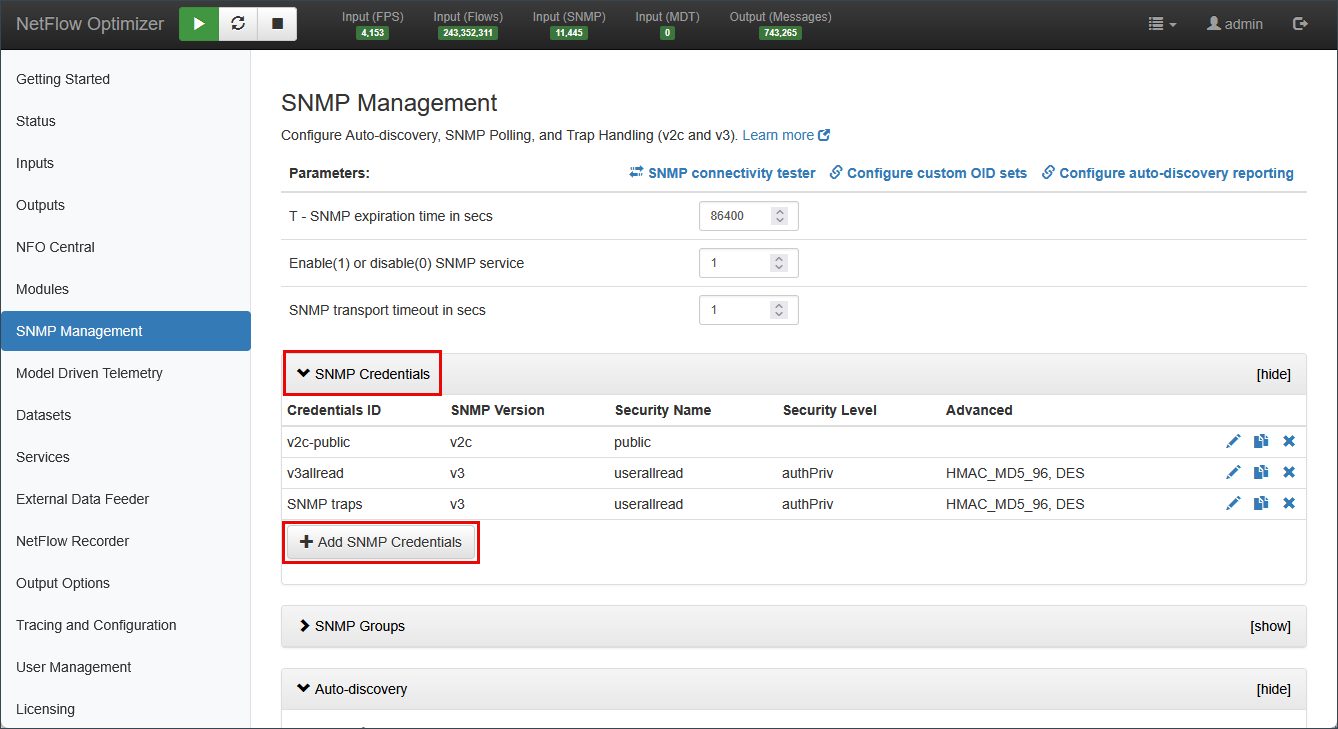

Navigate to SNMP Management > SNMP Credentials and click Add SNMP Credentials.

Adding SNMPv2c Credentials

For legacy environments or isolated networks where performance is prioritized over security, use SNMPv2c:

• Community String: The read-only community string (e.g., public) configured on the device.

Adding SNMPv3 Credentials

SNMPv3 provides authentication and privacy (encryption). This feature requires an SNMP Pro license.

Field	Description
Security Level	noAuthNoPriv (no security), authNoPriv (authentication only), or authPriv (authentication and encryption)
User Name	The SNMPv3 username configured on the network device
Authentication Protocol	MD5 or SHA. Newer versions support SHA224, SHA256, SHA384, SHA512
Authentication Password	The secret key used for authentication
Privacy Protocol	DES or AES (including AES/192/192C/256/256C)
Privacy Password	The secret encryption key for the user
Engine ID	(Optional) Unique identifier for the device sending traps. Ignored during polling — used for SNMPv3 trap receipt only

SNMP Privacy: Standard vs. AES-x-C

The only difference between these protocols is the key extension algorithm used when an authentication hash is too short for the encryption key.

• AES-256 & AES-256-C: Function identically when paired with SHA-256 or stronger.
• AES-192 & AES-192-C: Function identically when paired with SHA-224 or stronger.

If the authentication protocol generates a long enough key, the standard and "-C" variants are bit-for-bit identical. The "-C" logic only triggers when a short key must be stretched.

---

Auto-Discovery

NFO's Auto-discovery engine probes your network, identifies hardware by analyzing sysObjectID, sysDescription, and Private Enterprise Numbers, and automatically assigns Device Groups. The discovery dialog has five tabs.

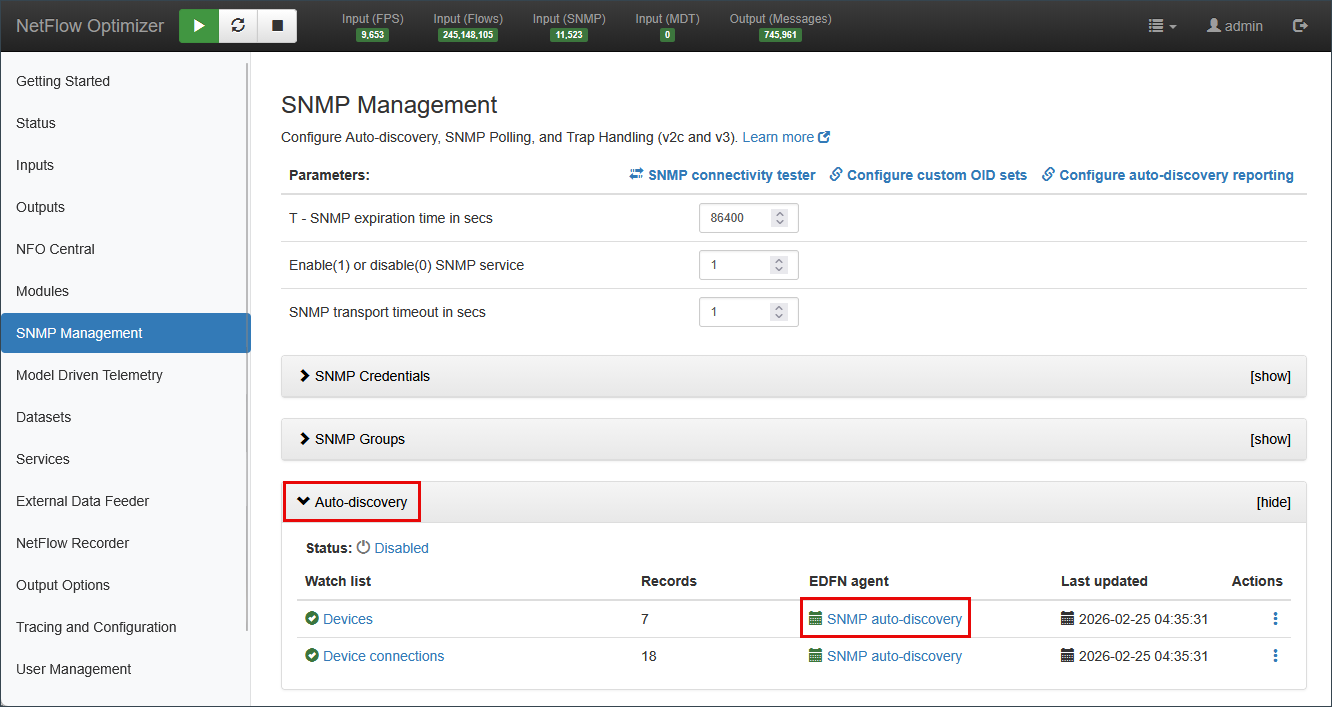

Navigate to SNMP Management > Auto-discovery and select the SNMP auto-discovery EDFN agent.

Settings Tab

Controls the core discovery process parameters.

Parameter	Description
Enable Auto-discovery	Toggle to enable or disable the background discovery process
Next time / Run now	Timestamp of next scheduled run. Click Run now to trigger immediately
Schedule	Cron expression for automatic re-discovery. Default: twice daily (15 0/12 * * *)
IPv4 devices URL	File path to the IPv4 device list used by the EDFN agent
IPv6 devices URL	File path to the IPv6 device list used by the EDFN agent
Discovery type	Method used for topology traversal: LLDP and CDP, LLDP only, CDP only, or None
Scan concurrency	Number of devices scanned in parallel. Default: 100
SNMP GET retries	Number of retry attempts per device. Default: 2
SNMP GET timeout, msec	Maximum wait time per SNMP request. Default: 2000 ms
Ignore duplicate SNMP agents	Skips devices that share an SNMP agent IP. Default: 1
Force include all devices (SNMP troubleshooting)	Forces all devices into inventory regardless of response. Use for troubleshooting only. Default: 0
Log level	Verbosity of discovery logs: INFO, DEBUG, WARN

Auto-Discovery Networks Tab

Defines the IP subnets, ranges, or individual addresses the EDFN agent scans, along with the credentials and optional grouping to apply per range.

Field	Description
Subnet (IP/mask) or IP range (IP1 - IP2)	The network range to scan (e.g., 10.0.0.0/24 or 192.168.20.1 - 192.168.20.24)
Port	SNMP port to use for this range. Default: 161
Credentials name	The SNMPv2c or SNMPv3 credential set to use when probing devices in this range
Notes	Optional free-text label for this range
LLDP/CDP seed	If enabled, NFO uses this range as a seed for LLDP/CDP topology traversal
Disabled	If checked, this range is skipped during discovery runs

Use Upload CSV to bulk-import ranges. Click Dry run to preview results without committing changes to inventory.

Classification Rules Tab

Defines override rules that reassign Device Group or Device Type when NFO's automatic classification does not match your operational requirements. Rules are evaluated in order — the first matching rule wins.

See Understanding Multi-Group Inheritance for the full explanation of how Device Groups and Device Types are applied.

Preview sysObjectIDs Tab

Displays all unique sysObjectID values returned by devices in the last discovery run, along with the PEN (Private Enterprise Number) and the Device Group NFO mapped them to. Use this tab to verify that your hardware is being recognized correctly before committing to inventory.

Preview Devices Tab

Displays a full list of all devices discovered in the last dry run or live run, including:

Column	Description
IP address	The device's SNMP management IP
Port	SNMP port used
Credentials	Credential set used to query this device
Status	Up or Down based on SNMP response
Group	Device Group automatically assigned
Type	Device Type automatically assigned
sysDescr	Raw system description string returned by the device
PEN	Private Enterprise Number
sysObjectID	Full OID identifying the device model
sysName	Hostname as reported by the device

Exporter IP Override Tab

Maps a device's SNMP Management IP to its Exporter IP — the source address it uses when sending flow records to NFO. This mapping is required for Module 10003 (SNMP Information Monitor) to join SNMP interface and device data to the corresponding flow records.

Use this tab when a device's management IP and flow exporter IP are different addresses.

---

Manual Device Configuration

If your security policy restricts network probing, or you prefer to manage inventory without automated scanning, you can configure devices manually.

Disabling Auto-Discovery

To prevent the system from automatically adding or reclassifying devices:

1. Navigate to SNMP Management > Auto-discovery.
2. Toggle the Enable Auto-discovery switch to Off.
3. Click Save.

Managing the Device List

Manual configuration is handled within the Watch list section. Click IPv4 device list or IPv6 device list to open the configuration pop-up.

• Auto-update by SNMP devices IPv4: Uncheck this checkbox to make the device list editable.
• Direct Entry: Use the Add record button to manually provide the SNMP Management IP, SNMP Port, select pre-configured SNMP Credentials, and map the device to its corresponding Exporter IP (if it is a flow source).
• Bulk Import: Upload a list of devices via CSV. The file must follow this format: Exporter IPv4, SNMP Management IPv4, SNMP Port, SNMP Credentials ID, Device Group, Device Type, Comment

Exporter IP vs. Management IP

These are often different addresses on the same physical device. The SNMP Management IP is the address NFO uses to poll the device. The Exporter IP is the source address the device uses when sending flow records to NFO. Providing this mapping allows Module 10003 (SNMP Information Monitor) to join SNMP interface and device metrics to the corresponding flow records. If the device does not send flow data, leave Exporter IP blank.

• Assigning Groups: Unlike Auto-discovery, manual entries require you to explicitly assign Device Groups. You can select multiple groups to ensure the device inherits the correct OID sets and polling intervals.

---

MIB Library

NFO ships with a standard set of MIBs covering common vendor hardware. The MIB library allows you to extend this by loading additional standard or custom MIBs — required when you need to poll OIDs that fall outside MIB-II or NFO's built-in vendor MIBs.

When you need this: Custom OID Sets (Module 10103) can only reference OIDs that NFO can resolve by name. If you are building an OID set for proprietary hardware and the OID name is not recognized, load the vendor's MIB here first.

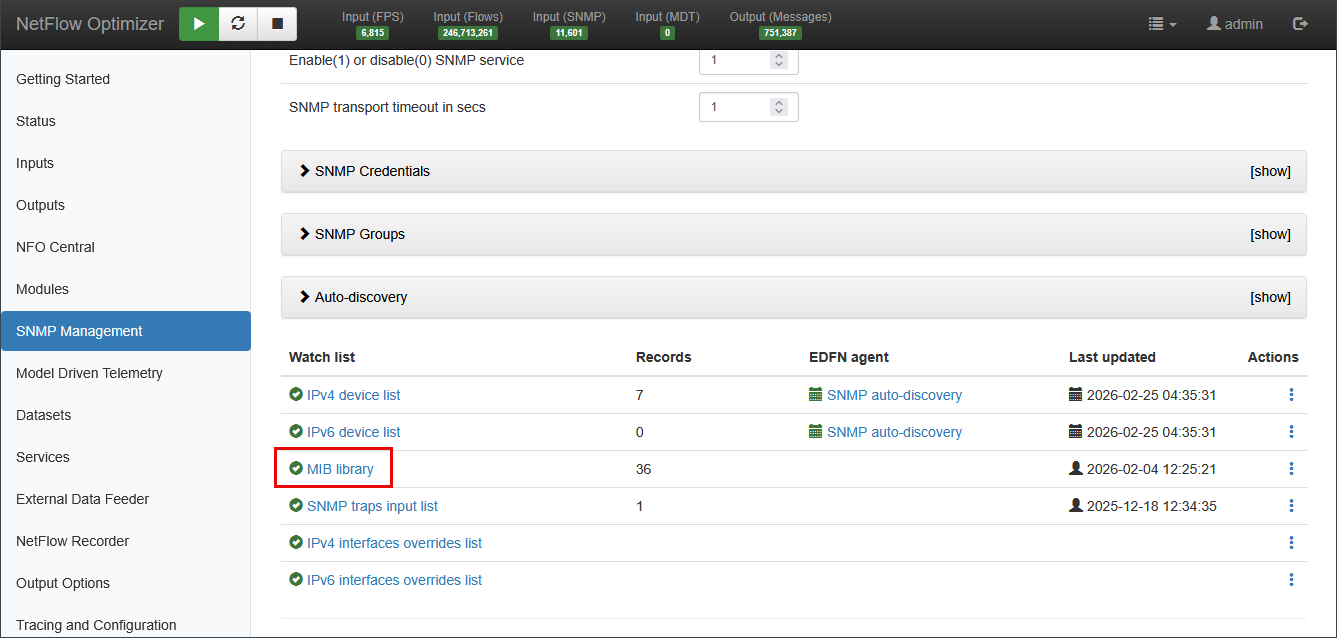

To add a MIB:

1. Navigate to SNMP Management and click MIB library.
2. Upload the MIB file (.mib or .txt format).
3. NFO parses and registers the OID tree. Once loaded, OID names from that MIB become available for use in Custom OID Sets.

note

MIB files must be valid SMIv2 format. If a MIB has dependencies (IMPORTS), load those MIBs first.

---

SNMP Trap Handling

NFO can receive SNMP traps from network devices and process them through the SNMP Traps Monitor (Module 10700). Trap inputs are configured from two places in the UI — here under SNMP Management > SNMP traps input list, and under Inputs > SNMP Trap Inputs. Both views manage the same configuration.

Configuring Trap Inputs

1. Navigate to SNMP Management and click SNMP traps input list, or navigate to Inputs > SNMP Trap Inputs.
2. Click + to add a new trap listener, or click the edit icon to modify the existing default port.
3. Set the UDP port to listen on. Default: 162.
4. Click Save.
5. Navigate to Modules > Utilities > 10700: SNMP Traps Monitor and toggle to Enabled.
6. To monitor trap activity, go to Status > Statistics and locate the SNMP panel.

SNMPv3 Trap Credentials

To receive SNMPv3 traps, you must first create a matching SNMPv3 credential entry in SNMP Credentials. The Engine ID field in the credential entry is used exclusively for trap receipt — it identifies the device sending the trap and is ignored during polling.

NFO automatically extracts and associates the Engine ID from incoming SNMPv3 trap PDUs. Pre-configuring the Engine ID is only required if you need to register a device before it has sent its first trap.

Trap Processing

Received traps are processed by Module 10700: SNMP Traps Monitor, which normalizes trap varbinds into NFO output fields. For output field mapping and SIEM forwarding configuration, see SNMP Traps Monitor (10700).

tip

If traps are being received but not appearing in output, verify that the sending device's source IP has a matching credential entry, and that the trap port is not blocked by a host firewall on the NFO server.

---

Interface Overrides

The IPv4 interfaces overrides list and IPv6 interfaces overrides list allow you to set default or forced values for interface-level SNMP fields on a per-device or per-interface basis.

When you need this: By default, NFO uses the values returned by the device via SNMP — interface name, description, speed, and so on. Use overrides when:

• A device returns incomplete or incorrect interface descriptions.
• You want to standardize interface naming across vendors for consistent dashboard labels (e.g., forcing WAN instead of a vendor-specific string).
• An interface speed reported via SNMP is incorrect and affects bandwidth utilization calculations.

To configure an override:

1. Navigate to SNMP Management and click IPv4 interfaces overrides list (or IPv6 as applicable).
2. Click Add record.
3. Specify the Exporter IP, Interface Index (ifIndex), and the field value to override.

Overrides apply at poll time — the substituted value is used in all downstream flow enrichment and output events for that interface.

---

Polling Rules

Polling Rules, introduced in NFO 2.12.0, allow you to filter which devices or interfaces are included in SNMP polling based on defined conditions. This reduces unnecessary polling load and keeps collected data focused on relevant infrastructure.

Rules are evaluated against device and interface attributes at poll time. A device or interface that does not match the rule conditions is skipped for that polling cycle.

For configuration instructions, see Configuring Rules in SNMP Custom OID Sets Monitor (10103).

---

SNMP Connectivity Tester

The SNMP Connectivity Tester verifies that NFO can successfully reach and query a target network device using specified credentials. Use this before adding a device to the polling lists.

Navigate to SNMP Management and click SNMP connectivity tester.

Parameter	Description
Target IP address	The IP address of the device to test
Target port	UDP port for SNMP communication. Default: 161
SNMP credentials	Select a configured SNMPv2c or SNMPv3 credential set
SNMP operation	snmpget (single OID) or snmpwalk (traverse OID tree)
Optional OIDs	OIDs to query (e.g., sysName.0). Leave blank for a basic connectivity check using sysDescr and sysName
Retries	Number of retry attempts if the initial request fails
Timeout ms	Maximum wait time in milliseconds before the attempt is marked as failed

After configuring the parameters, click Test Connection to view results in the Test result box.

---

NFO Modules Using SNMP Data

10003: SNMP Information Monitor

When flow records are processed, Module 10003 queries the SNMP service for device and interface data, passing the Exporter IP and Interface SNMP index as parameters. The SNMP service polls the corresponding device using the Exporter IP / Management IP mapping and caches the result until it expires (controlled by the T – SNMP expiration time in secs parameter).

For more information, see SNMP Information Monitor (10003).

10103: SNMP Custom OID Sets Monitor

Enables you to create custom OID sets to report SNMP polling data. Device Groups allow you to link OID sets to the groups a device is assigned to.

For more information, see SNMP Custom OID Sets Monitor (10103 / 20103).

10700: SNMP Traps Monitor

Reports SNMP traps received by NFO.

For more information, see SNMP Traps Monitor (10700).

10701: Auto-discovery Reporter

Reports auto-discovered devices and device connections.

For more information, see Auto-discovery Reporter (10701).

---

Suspending SNMP Polling from Inactive Devices

The success of SNMP polling depends on device availability and responsiveness. Depending on device status and the OIDs queried, the following outcomes may occur:

Potential Issue	Output
Device is unresponsive	None. Check Status > Logs or nfo_audit.log
Requested OID is not supported by the device	OID is not included in output
OID is returned but value is null	MISSING
Returned value is invalid (wrong type, length, etc.)	na

If a device does not respond to SNMP polling, polling for that device is suspended for a configurable period of time, set by the environment variable NFO_SNMP_INACTIVE_POLL_TIMEOUT (default: 3600 seconds).

While suspended, SNMP requests for that device are skipped and counted under number of SNMP polling skipped requests on the Status page.

note

When a device is placed on the skip polling list, an event is recorded in nfo_audit.log in the $NFO_HOME/logs directory. These messages are also visible on the Logs tab of the Status page.

Example:

2026-02-23 10:08:03 NOTICE #-1 service=SNMP threadId=1 description="Unresponsive device" node=10.1.1.6:161 requestType=table(bulk) setName="cisco_mem" resultCode=-1
2026-02-23 10:07:57 NOTICE #-1 service=SNMP threadId=1 description="Unresponsive device" node=10.1.1.6:161 requestType=table(bulk) setName="cisco_cpu" resultCode=-1
2026-02-23 10:07:51 NOTICE #-1 service=SNMP threadId=1 description="Unresponsive device" node=10.1.1.6:161 requestType=arbitrary setName="cisco_cpu" resultCode=-1
2026-02-23 10:07:44 NOTICE #-1 service=SNMP threadId=1 description="Unresponsive device" node=10.1.1.9:161 requestType=arbitrary setName="device_info" resultCode=-1

You may forward these logs to your SIEM for active monitoring and alerting.

---

SNMP Tuning Environment Variables

The following environment variables allow for granular optimization of SNMP polling and trap processing.

CAUTION

These variables are intended for advanced performance tuning in specific high-scale environments. Modifying these values without consulting NetFlow Logic Support is not recommended, as improper configuration can lead to increased CPU load, memory exhaustion, or data loss.

To configure these variables:

1. Navigate to Tracing and Configuration.
2. Enter the desired variables in the NFO Server environment variables section.
3. Restart the NFO service for changes to take effect.

Parameter	Description	Default
NFO_SNMP_REQ_QUEUE_LEN	SNMP requests queue length (default and arbitrary)	1000 (min 100, max 100000)
NFO_SNMP_TRAP_QUEUE_LEN	SNMP traps queue length	1000 (min 100, max 100000)
NFO_SNMP_GETBULK_DISABLE	Disable GetBulk requests	0 (enabled); 1 (disabled)
NFO_SNMP_GETBULK_REPEATERS	SNMP max-repetitions for GetBulk	10 (min 1, max 100)
NFO_SNMP_MSG_MAX_SIZE	Maximum SNMP message size (maxMsgSize)	0 (uses NetSNMP default of 1500; min 484, max 65507)
NFO_SNMP_RETRIES	SNMP retries count	-1 (uses NetSNMP default of 5; min 0, max 10)
NFO_SNMP_INACTIVE_POLL_TIMEOUT	Suspension period for unresponsive devices (per OID Set)	3600 seconds
NFO_SNMP_THREAD_COUNT	Number of threads allocated for SNMP polling	1 (min 1, max 1024)
NFO_SNMP_TRAP_UNK_SEC_NAME_TIMEOUT	Suspension period when a trap arrives from a device with unconfigured credentials	600 seconds (min 60, max 86400)
